T391G Rotator

with independent sideshift - 2 hydraulic functions


The KAUP Rotator 360° endless T391 is also available in a foundry implementation. This attachment is adapted to the demands of this operational area with a closed fork carriage plate and a closed base plate as well as heat-resistant covered hydraulic tubes. Otherwise this rotator resembles the T391.

  • Foundry implementation
  • Good residual capacity
  • Rotation 360° endlessly
  • Robust construction with gear drive
  • Sideshift serially
  • Original forks usable
  • Lateral supporting fork and load stabilizers optionally

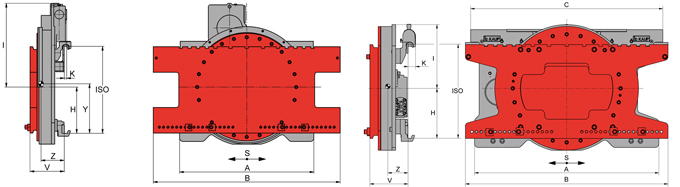

Model Cap. kg LCD mm S mm A mm B mm C mm H mm I mm K mm ISO Md ∆-P = 125 bar Nm Req.oil volume per rotation ltr. V mm CofG Z mm Weight kg
1T391.2G 1.800 500 ±100 800 890 858 203 410 32 2 6.013 7,6 206 114 276
2T391.1G 2.500 500 ±100 800 1.040 880 269 492 32 2 7.700 9,7 204 115 327
2T391.1G 2.500 500 ±100 800 1.150 880 269 492 32 2 7.700 9,7 204 116 335
2,5T391.1G 3.200 500 ±100 800 1.100 850 269 492 40 3 7.700 9,7 205 121 420
3,5T391.1G 4.000 500 ±100 1.060 1.100 1.060 381 539 43 3 11.815 13,8 210 117 544
4T391.1G 5.000 500 ±100 1.110 1.100 940 378 595 43 3 14.823 17,4 218 113 610
4,5T391.1G 5.000 500 ±160 1.110 1.350 940 378 695 49 4 14.823 17,4 238 128 723
5T391.2G 6.000 600 ±160 1.260 1.350 1.260 345 455 50 4 13.434 15,7 275 151 875
6T391.2G 6.500 600 ±160 1.260 1.350 1.260 345 455 50 4 17.157 20,7 275 147 925
8T391.2G 8.000 900 ±160 1.300 1.600 1.700 396 480 54 4 21.679 18,8 304 165 1.145
