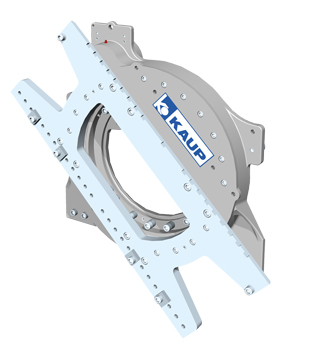

T351S Rotator

1 hydraulic function


This attachment is adapted to the demands of this operational area with special sea-water resistant paint, galvanised screws, flanges and fork carriages (according to implementation) as well as with silicone to close drilling's and drill holes sealed. But also for tannings this device is suitable.

  • Fishing implementation
  • Good visibility conditions
  • Good residual capacity
  • Rotation 360° endlessly
  • Robust construction with gear drive
  • Original forks usable
  • Lateral supporting fork and load stabilizers optionally

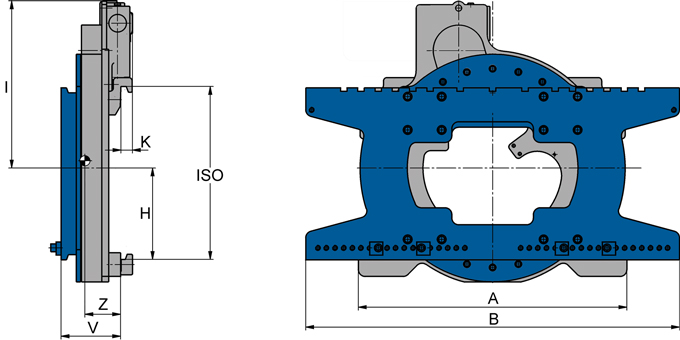

Model Cap. kg LCD mm A mm B mm H mm I mm K mm ISO Md ∆-P = 125 bar Nm Req.oil volume per rotation ltr. V mm CofG Z mm Weight kg
1T351.1S 1.800 500 560 890 213 478 33 2 6.013 7,6 155 83 180
2T351.1S 2.500 500 790 1.040 269 515 29 2 7.700 9,7 166 90 225
2,5T351.1S 3.200 500 790 1.100 269 515 33 3 7.700 9,7 177 98 290
1T351.1.3S 1.800 500 560 890 213 478 33 2 6.013 7,6 155 83 180
2T351.1.3S 2.500 500 790 1.040 269 515 29 2 7.700 9,7 166 90 225
2,5T351.1.3S 3.200 500 790 1.100 269 515 33 3 7.700 9,7 177 98 290
