T391S Rotator

with independent sideshift - 2 hydraulic functions


Beside the foundry implementation the KAUP Rotator 360° endless T391 is also available in two fishing implementation. These attachments are adapted to the demands of this operational area with special sea-water resistant paint, galvanised screws, flanges and fork carriages (according to implementation) as well as drill holes sealed with silicon.

  • Good visibility conditions
  • Good residual capacity
  • Rotation 360° endlessly
  • Robust construction with gear drive
  • Independent sideshift serially
  • Original forks usable
  • Lateral supporting fork and load stabilizers optionally

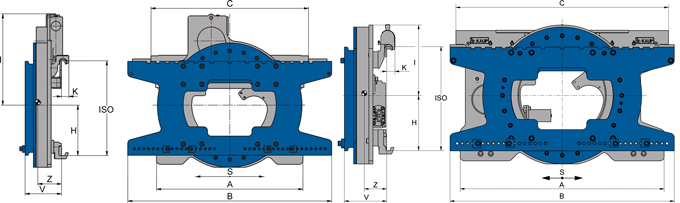

Model Cap. kg LCD mm S mm A mm B mm C mm H mm I mm K mm ISO Md ∆-P = 125 bar Nm Req.oil volume per rotation ltr. V mm CofG Z mm Weight kg
1T391.2S 1.800 500 ±100 780 890 858 213 294 32 2 6.013 7,6 192 99 198
2T391.1S 2.500 500 ±100 790 1.040 858 269 492 32 2 7.700 9,7 172 90 255
2,5T391.1S 3.200 500 ±100 790 1.100 850 269 492 40 3 7.700 9,7 197 108 318
1T391.2.3S 1.800 500 ±100 780 890 858 213 294 32 2 6.013 7,6 192 99 198
2T391.1.3S 2.500 500 ±100 790 1.040 858 269 492 32 2 7.700 9,7 172 90 255
2,5T391.1.3S 3.200 500 ±100 790 1.100 850 269 492 40 3 7.700 9,7 197 108 318
