T351 Rotator

1 hydraulic function

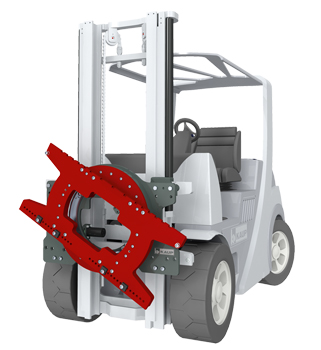

The KAUP Rotator 360° endless T351 can be positioned at two different places differing the lost loads and residual capacities are the results.

  • Good visibility conditions
  • Good residual capacity
  • Rotation 360° endlessly
  • Robust construction with gear drive
  • Original forks usable
  • Lateral supporting fork and load stabilizers optionally

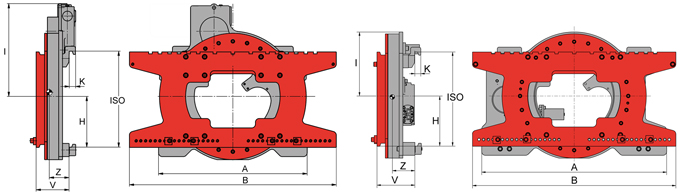

Model Cap. kg LCD mm A mm B mm H mm I mm K mm ISO Md ∆-P = 125 bar Nm Req.oil volume per rotation ltr. V mm CofG Z mm Weight kg
0,8T351.2 1.200 500 860 890 203 278 33 2 4.226 5,3 156 94 165
0,8T351.2 1.200 500 860 1.040 203 278 33 2 4.226 5,3 156 97 175
1T351.1 1.800 500 560 780 213 478 33 2 6.013 7,6 155 78 166
1T351.1 1.800 500 560 890 213 478 33 2 6.013 7,6 155 80 171
1T351.2 1.800 500 780 780 211 287 31 2 6.013 7,6 190 108 172
1T351.2 1.800 500 780 890 211 287 31 2 6.013 7,6 190 110 177
2T351.1 2.500 500 790 1.040 269 457 33 2 7.700 9,7 166 90 225
2T351.2 2.500 500 1.000 1.040 270 345 29 2 7.700 9,7 200 113 255
2,5T351.1 3.200 500 790 1.100 269 492 33 3 7.700 9,7 176 98 290
2,5T351.2 3.200 500 1.000 1.100 270 345 33 3 7.700 9,7 205 122 305
4T351.2 5.000 500 1.010 1.100 339 395 33 3 8.950 11,3 213 122 380
4,5T351.1 5.000 500 870 1.350 328 675 36 4 14.823 17,4 221 124 524
5T351.2 6.000 600 1.260 1.350 345 455 40 4 13.434 15,7 264 156 655
6T351.2 6.500 600 1.260 1.350 345 455 40 4 17.157 20,7 264 150 715
8T351.2 8.000 900 1.300 1.600 396 485 40 4 21.679 18,8 304 172 1.045
