T410Z Fork Positioner

with independent sideshift, 2 hydraulic functions - without forks - for forks acc. to ISO 2330

Request Pricing

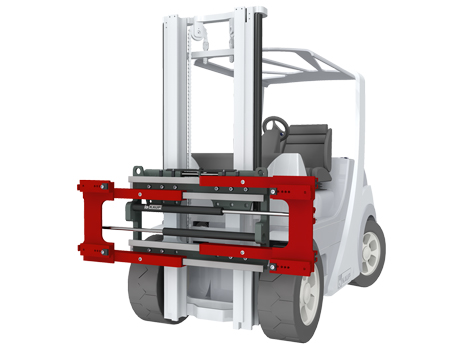

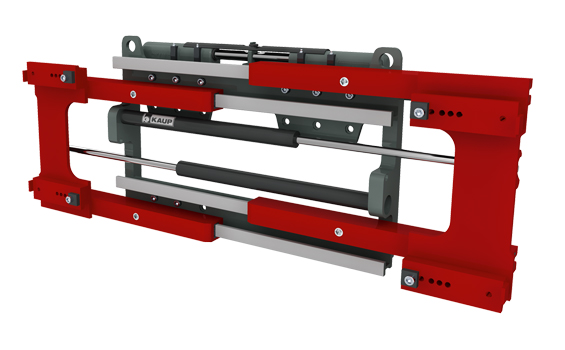

The robust KAUP Fork Positioner T410Z is the alternative to Fork Positioner T466B when a large opening range is required on a small construction width. This attachment is ideal for heavy duty operation and is supplied without forks. Numerous individual configurations are possible.

Strengthened design
Good residual capacity
Independent sideshift serially
Original forks or Telescopic Forks can be used

Recycling

B&B Attachments offer a comprehensive service in providing material handling solutions for a number of industries.

Logistics

Across the globe, B&B attachments are providing material handling solutions that help logistics professionals move their materials.

Pallet Handling

Pallet handling is an essential component in most operations. Storage and transport throughout the warehouse must be well planned.

B&B Attachments helps improve productivity at Charcon CS

Charcon Construction Solutions offers integrated building services by providing innovative offsite-manufactured components and precast products for most stages of construction. Charcon CS also offers energy-efficient and cost-effective solutions for the construction of modern industrial buildings. The company is comprised of a network of facilities across the UK, specialising in the housing, healthcare, education, industrial and commercial sectors.

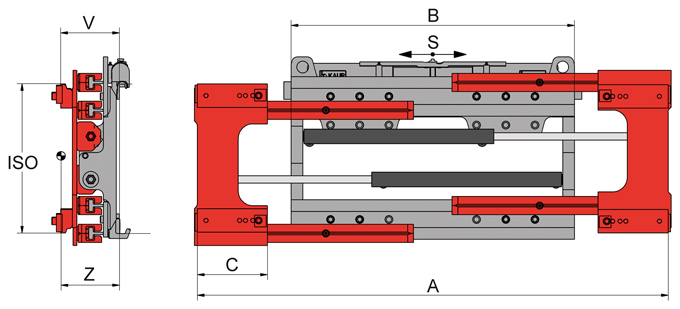

Model	Cap. kg	LCD mm	S mm	A mm	B mm	C mm	ISO	V mm	CofG Z mm	Weight kg
1T410Z	1.500	500	±100	540-1.500	750	240	2	183	89	173
1T410Z	1.500	500	±100	540-1.720	970	240	2	183	87	196
1T410Z	1.500	500	±100	550-1.900	1.130	240	2	183	87	206
1T410Z	1.500	500	±100	530-1.930	1.200	240	2	183	86	211
1,6T410Z	2.300	500	±100	530-1.710	1.040	240	2	188	86	231
1,6T410Z	2.300	500	±100	560-1.860	1.130	240	2	188	85	237
1,6T410Z	2.300	500	±100	560-2.060	1.330	240	2	188	85	250
2,5T410Z	2.800	500	±100	530-1.710	1.040	240	2	198	91	245
2,5T410Z	2.800	500	±100	560-1.860	1.130	240	2	198	90	251
2,5T410Z	2.800	500	±100	560-2.060	1.330	240	2	198	89	264
2,5T410Z	3.000	500	±100	560-1.860	1.130	240	3	208	84	281
2,5T410Z	3.000	500	±100	560-2.060	1.330	240	3	208	84	295
3T410Z	3.600	500	±100	560-1.860	1.130	240	2	223	95	374
3T410Z	3.600	500	±100	560-2.060	1.330	240	2	223	94	392
3T410Z	3.600	500	±100	550-2.170	1.460	240	2	223	94	403
3T410Z	3.600	500	±100	560-1.860	1.130	240	3	223	95	374
3T410Z	3.600	500	±100	560-2.060	1.330	240	3	223	94	392
3T410Z	3.600	500	±100	550-2.170	1.460	240	3	223	94	403
4T410Z	4.150	500	±100	560-1.860	1.130	240	3	233	100	420
4T410Z	4.150	500	±100	560-2.060	1.330	240	3	233	99	440
4T410Z	4.150	500	±100	550-2.170	1.460	240	3	233	99	452
4,5T410Z	5.000	500	±100	580-1.930	1.200	240	3	258	114	497
4,5T410Z	5.000	500	±100	540-1.980	1.330	240	3	258	113	515
4,5T410Z	5.000	500	±100	470-1.970	1.460	240	3	258	112	532
4,5T410Z	5.000	500	±100	580-2.280	1.550	240	3	258	112	547
4,8T410Z	5.000	600	±100	580-1.930	1.200	240	3	253	113	499
4,8T410Z	5.000	600	±100	540-1.980	1.330	240	3	253	112	513
4,8T410Z	5.000	600	±100	470-1.970	1.460	240	3	253	112	527
4,8T410Z	5.000	600	±100	580-2.280	1.550	240	3	253	111	541
5T410Z	6.200	600	±160	530-2.160	1.550	260	4	260	99	610
5T410Z	6.200	600	±160	800-2.700	1.550	260	4	260	102	670
5T410Z	6.200	600	±160	530-2.430	1.820	260	4	260	99	643
