T183C Crane Jib

Request Pricing

Different versions of KAUP Crane Jibs are mounted directly onto the fork carriage. Combination with other attachments or with standard forks is, depending on the handling task, easily possible.

Depending on the version chosen, the crane hook can be either adjusted mechanically (T183C), the telescopic boom extended mechanically (T183CTM) or hydraulically (T183CTH).

  • Solid construction
  • Good visibility conditions
  • Simple assembly
  • Original forklift truck forks can be used
  • Combination with other attachments possible

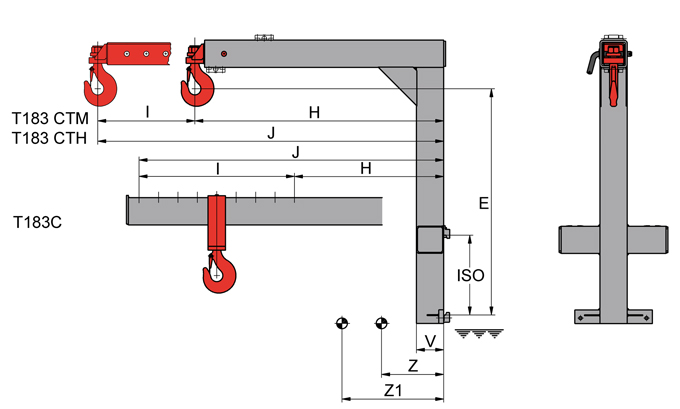

Model Cap. kg LCD mm H-J mm I mm E mm ISO V mm CofG Z mm CofG Z1 mm Weight kg Price €
1T183C 1.500 500 500-1.200 7x100 1.110 2 120 358 -- 115 On request
2T183C 2.500 500 500-1.200 7x100 1.080 2 140 368 -- 158 On request
2T183C 2.500 500 500-1.200 7x100 1.080 3 140 368 -- 158 On request
3T183C 4.000 500 500-1.200 7x100 1.365 3 160 310 -- 210 On request
5T183C 6.000 600 600-1.200 4x150 1.255 4 200 359 -- 270 On request
7T183C 8.000 600 600-1.200 4x150 1.250 4 260 372 -- 262 On request
10T183C 6.600 1.200 1.175-2.000 5x165 1.165 4 260 685 -- 585 On request
1T183CTM 820 1.200 1.200-2.000 8x100 1.135 2 120 390 587 150 On request
2T183CTM 1.470 1.200 1.200-2.000 8x100 1.230 2 140 359 537 181 On request
2T183CTM 1.470 1.200 1.200-2.000 8x100 1.230 3 140 359 537 181 On request
3T183CTM 2.350 1.200 1.200-2.000 8x100 1.310 3 160 349 524 245 On request
5T183CTM 3.650 1.350 1.350-2.150 8x100 1.265 4 200 440 663 349 On request
7T183CTM 5.000 1.350 1.350-2.150 8x100 1.265 4 220 433 631 373 On request
1T183CTH 820 1.200 1.200-2.000 - 1.220 2 120 390 609 150 On request
2T183CTH 1.470 1.200 1.200-2.000 - 1.230 2 140 359 570 181 On request
2T183CTH 1.470 1.200 1.200-2.000 - 1.230 3 140 359 570 181 On request
3T183CTH 2.350 1.200 1.200-2.000 - 1.320 3 160 349 543 245 On request
5T183CTH 3.650 1.350 1.350-2.150 - 1.280 4 200 440 684 349 On request
7T183CTH 5.000 1.350 1.350-2.150 - 1.270 4 260 433 672 373 On request
10T183CTH 6.400 1.350 1.350-2.050 - 1.145 4 260 570 707 820 On request
