T185T Carpet Carrying Ram

Request Pricing

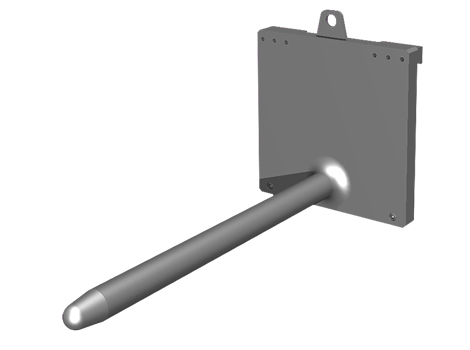

Carpet rolls with a small inner diameter can be easily transported with a KAUP Carpet Carrying Ram T185T. The length of the long thin ram should be at least 2/3 of the length of the carpet to be transported. This means that a ram with a length of 3.500 mm can transport a carpet with a length of 5.000 mm.

  • Manufactured from steel with high tensile and yield strength
  • Solid design

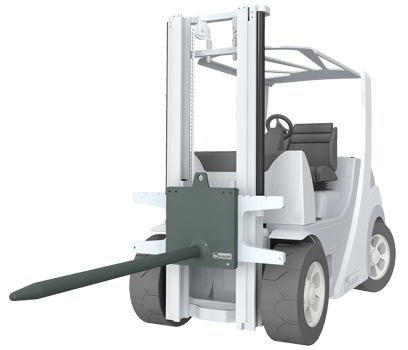

  • Mounted directly on to the fork carriage
  • Optionally to slip-on forklift truck forks
  • Variation for handling Big Bags available

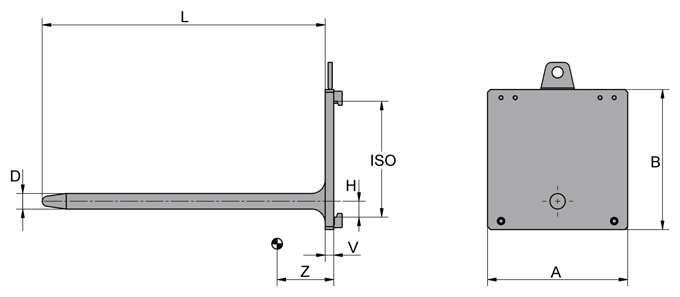

Model D mm A mm B mm H mm L mm Cap. kg LCD mm ISO V mm CofG Z mm Weight kg Add-on weight per 100mm ram length kg Price €
1T185T 45 500 500 55 1.000 530 500 2 30 93 76 1,25 On request
1T185T 50 500 500 55 1.000 736 500 2 30 114 78 1,54 On request
1T185T 55 500 500 55 1.000 980 500 2 30 128 81 1,86 On request
1,5T185T 60 500 500 55 1.000 1.272 500 2 50 113 124 2,22 On request
1,5T185T 65 500 500 55 1.000 1.614 500 2 50 123 128 2,60 On request
2T185T 70 500 500 55 1.000 2.020 500 2 50 133 132 3,02 On request
2T185T 75 500 500 55 1.000 2.484 500 2 50 143 135 3,46 On request
3T185T 80 600 600 55 1.000 3.012 500 3 50 119 190 3,94 On request
3T185T 85 600 600 55 1.000 3.618 500 3 50 139 197 4,45 On request
4T185T 90 600 600 55 1.000 4.284 500 3 60 139 230 4,99 On request
4T185T 95 600 600 55 1.000 5.050 500 3 60 147 235 5,56 On request
5T185T 100 600 760 50 1.000 5.890 500 4 60 155 240 6,16 On request
6T185T 110 600 760 50 1.000 6.100 500 4 60 146 300 7,46 On request
7T185T 120 600 760 120 1.000 7.868 500 4 80 136 382 8,88 On request
8T185T 130 600 760 120 1.000 10.066 500 4 80 154 400 10,42 On request
