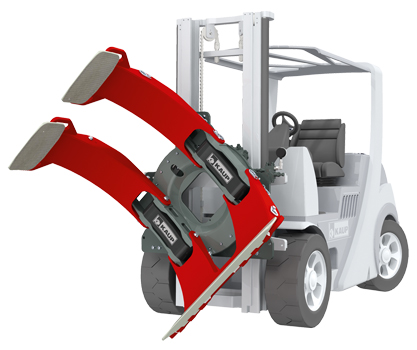

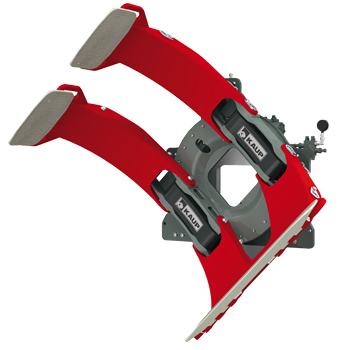

T458-2 Rotating Roll Clamp

360° rotation continuous - Short arm adjustable in 45° position (1) fixed) split contact pads on long pivoting arm - 2 hydraulic functions


With the view-optimised designed KAUP Rotating Role Clamp T458-2 roles and pipes can lifted and transported carefully. The contact pad of this attachment is divided in such a way that two rolls can be lifted at the same time -  This makes this attachment invaluable where the dealing with paper roles, concrete tubes and similar items.

  • Very good visibility conditions
  • Favorable lost load and weight
  • Solid, slender arm construction
  • Different contact pad coatings available
  • Rotation 360° endlessly
  • Limitation on rotation 180° optionally

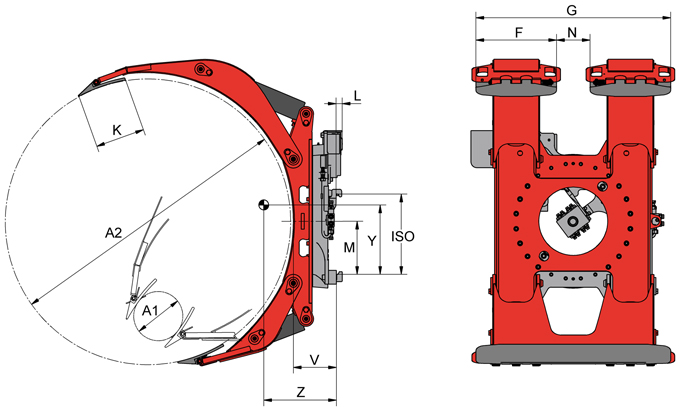

Model Cap. kg LCD mm A1-A2 mm F mm G mm K mm L mm M mm N mm Md ∆-P = 125 bar Nm Req.oil volume per rotation ltr. ISO V mm CofG Z mm Weight kg Price €
1T458-2 800 450 350-900 300 700 250 33 208 100 6.013 7,6 2 165 231 337 On request
1T458-2 1.400 575 250-1.150 300 700 250 33 208 100 6.013 7,6 2 147 294 399 On request
1T458-2 1.400 650 400-1.300 300 700 250 33 208 100 6.013 7,6 2 147 288 399 On request
1T458-2 1.400 650 250-1.300 300 700 250 33 208 100 6.013 7,6 2 147 287 404 On request
1,5T458-2 1.500 675 250-1.350 300 700 250 33 208 100 6.013 7,6 2 180 320 549 On request
1,5T458-2 1.250 800 250-1.600 300 700 250 33 208 100 6.013 7,6 2 180 375 604 On request
2T458-2 2.200 675 250-1.350 415 1.000 250 32 270 170 7.700 9,7 2 232 312 606 On request
2T458-2 2.000 725 250-1.450 415 1.000 250 32 270 170 7.700 9,7 2 218 362 651 On request
2T458-2 2.000 800 250-1.600 415 1.000 250 32 270 170 7.700 9,7 2 218 367 666 On request
2T458-2 1.700 915 350-1.830 415 1.000 250 32 270 170 7.700 9,7 2 218 389 696 On request
2T458-2 1.600 1050 700-2.100 415 1.000 250 32 270 170 7.700 9,7 2 218 413 768 On request
2T458-2 2.200 675 250-1.350 415 1.000 250 32 270 170 7.700 9,7 3 232 312 606 On request
2T458-2 2.000 725 250-1.450 415 1.000 250 32 270 170 7.700 9,7 3 218 362 651 On request
2T458-2 2.000 800 250-1.600 415 1.000 250 32 270 170 7.700 9,7 3 218 367 666 On request
2T458-2 1.700 915 350-1.830 415 1.000 250 32 270 170 7.700 9,7 3 218 389 696 On request
2T458-2 1.600 1050 700-2.100 415 1.000 250 32 270 170 7.700 9,7 3 218 413 768 On request
3T458-2 2.800 675 250-1.350 415 1.000 250 40 338 170 8.950 11,3 3 265 306 707 On request
3T458-2 2.800 725 250-1.450 415 1.000 250 40 338 170 8.950 11,3 3 251 352 748 On request
3T458-2 2.800 800 250-1.600 415 1.000 250 40 338 170 8.950 11,3 3 251 354 764 On request
3T458-2 2.500 915 350-1.830 415 1.000 250 40 338 170 8.950 11,3 3 251 379 796 On request
3T458-2 2.200 1050 700-2.100 415 1.000 250 40 338 170 8.950 11,3 3 251 404 864 On request
4T458-2 3.600 725 250-1.450 420 1.000 300 36 381 160 11.815 13,8 3 237 336 980 On request
4T458-2 3.500 800 250-1.600 420 1.000 300 36 381 160 11.815 13,8 3 237 348 1.091 On request
4T458-2 3.400 915 350-1.830 420 1.000 300 36 381 160 11.815 13,8 3 237 373 1.106 On request
4T458-2 3.000 1050 700-2.100 420 1.000 300 36 381 160 11.815 13,8 3 237 399 1.116 On request
4T458-2 3.600 725 250-1.450 420 1.000 300 36 516 160 11.815 13,8 4 237 336 980 On request
4T458-2 3.500 800 250-1.600 420 1.000 300 36 516 160 11.815 13,8 4 237 348 1.091 On request
4T458-2 3.400 915 350-1.830 420 1.000 300 36 516 160 11.815 13,8 4 237 373 1.106 On request
4T458-2 3.000 1050 700-2.100 420 1.000 300 36 516 160 11.815 13,8 4 237 399 1.116 On request
5T458-2 4.500 800 250-1.600 500 1.200 400 40 345 200 13.434 15,7 4 302 387 1.287 On request
5T458-2 4.000 915 350-1.830 500 1.200 400 40 345 200 13.434 15,7 4 302 406 1.379 On request
5T458-2 4.000 950 800-1.900 500 1.200 400 40 345 200 13.434 15,7 4 302 412 1.396 On request
5T458-2 3.900 1050 700-2.100 500 1.200 400 40 345 200 13.434 15,7 4 302 431 1.414 On request
5T458-2 3.500 1200 850-2.400 500 1.200 400 40 345 200 13.434 15,7 4 302 476 1.485 On request
5T458-2 3.500 1200 650-2.400 500 1.200 400 40 345 200 13.434 15,7 4 302 477 1.489 On request
5T458-2 3.200 1250 900-2.500 500 1.200 400 40 345 200 13.434 15,7 4 302 477 1.534 On request
6T458-2 4.800 900 1.000-1.800 500 1.200 400 40 396 200 21.679 18,8 4 391 424 1.657 On request
6T458-2 4.800 900 700-1.800 500 1.200 400 40 396 200 21.679 18,8 4 391 424 1.692 On request
6T458-2 5.000 1100 1.250-2.200 500 1.200 400 40 396 200 21.679 18,8 4 381 476 1.850 On request
6T458-2 5.000 1100 850-2.200 500 1.200 400 40 396 200 21.679 18,8 4 381 475 1.885 On request
