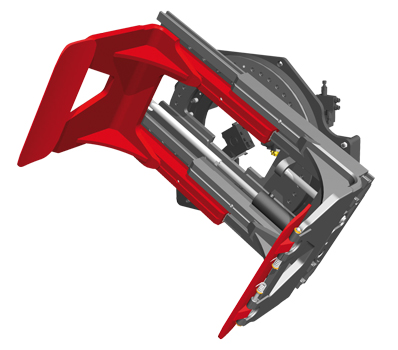

T458P Rotating Roll Clamp

360° rotation continuous - with parallel arms - 2 hydraulic functions


The models of the class T458P/T258 of KAUP  are different compared to other rotating roll clamps: Independent of the used opening range the clamp strength allows, the product - no matter what size - can always be lifted with the same strength carefully and transported by parallel guided clamp arms.

  • Robust construction
  • Solild and very slender arm construction
  • Rotation 360° endlessly

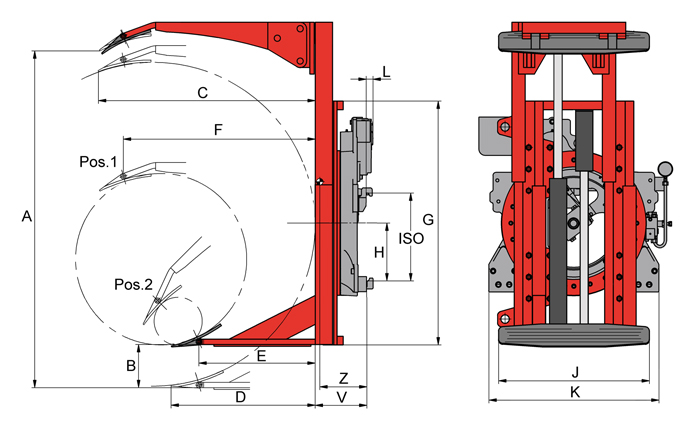

Model Cap. kg LCD mm mm A mm B mm C mm D mm E mm F mm G mm H mm J mm K mm L mm Md ∆-P = 125 bar Nm Req.oil volume per rotation ltr. ISO V mm CofG Z mm Weight app. kg
1T458P 1.200 600 350-1.200 1.315 200 855 510 380 740 850 213 700 560 33 6.013 7,6 2 215 259 407
1,5T458P 1.200 675 300-1.350 1.425 200 925 580 450 810 970 213 700 560 33 6.013 7,6 2 215 272 421
2T458P 2.000 750 300-1.500 1.570 200 1.005 670 540 890 1.130 269 700 790 33 7.700 9,7 2 232 279 543
2T458P 2.000 750 300-1.500 1.570 200 1.005 670 540 890 1.130 269 700 790 33 7.700 9,7 3 232 279 543
3T458P 2.500 750 300-1.500 1.600 200 995 655 540 890 1.130 338 990 1.010 40 8.950 11,3 3 279 335 885
4T458P 3.200 935 430-1.870 1.985 200 1.290 865 750 1.155 1.330 328 800 870 36 8.950 11,3 3 292 346 1.128
10T258 8.200 1150 900-2.300 2.700 300 1.485 1.010 - - 1.800 328 1.050 1.120 - 23.000 32,8 - 360 350 3.500
15T258 11.000 1150 900-2.300 2.700 400 1.485 1.010 - - 2.230 328 1.500 1.120 - 23.000 32,8 - 450 500 8.200
20T258 15.000 1150 900-2.300 2.700 400 1.485 1.010 - - 2.230 328 1.500 1.350 - 34.500 46,2 - 520 600 9.500
