T458T Rotating Tissue Roll Clamp

360° rotation continuous - Short arm adjustable in 45° position (1) fixed) split contact pads on long pivoting arm - 2 hydraulic functions


The view-optimised designed KAUP Rotating Tissue Roll Clamp T458T is well suited for the careful transport of paper and cellulose rolls.

  • Very good visibility conditions
  • Favorable lost load and weight
  • Solid, slender arm construction
  • Different contact pad coatings available
  • Rotation 360° endlessly
  • Limitation on rotation 180° optionally

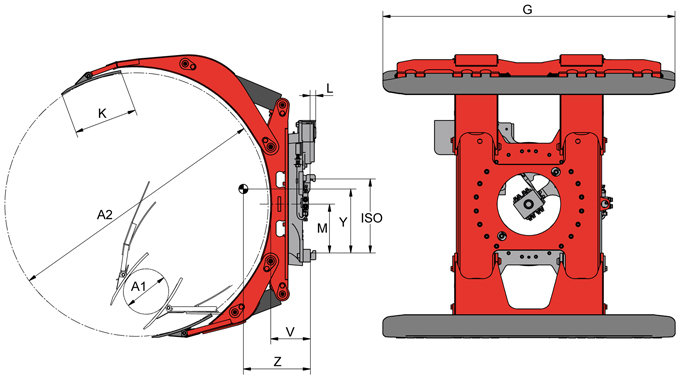

Model Cap. kg LCD mm A1-A2 mm G mm K mm L mm M mm Md ∆-P = 125 bar Nm Req.oil volume per rotation ltr. ISO V mm CofG Z mm Weight kg Price €
1T458T 1.200 650 400-1.300 850 300 33 213 6.013 7,6 2 147 290 340 On request
1T458T 1.400 650 400-1.300 850 300 33 213 6.013 7,6 2 147 300 406 On request
2T458CT 2.000 800 530-1.600 1.400 350 32 269 7.700 9,7 2 218 394 662 On request
2T458T 2.000 800 250-1.600 1.400 350 32 269 7.700 9,7 2 218 393 699 On request
2T458T 1.700 915 350-1.830 1.400 350 32 269 7.700 9,7 2 228 430 740 On request
2T458CT 2.000 800 530-1.600 1.400 350 32 269 7.700 9,7 3 218 394 662 On request
2T458T 2.000 800 250-1.600 1.400 350 32 269 7.700 9,7 3 218 393 699 On request
2T458T 1.700 915 350-1.830 1.400 350 32 269 7.700 9,7 3 228 430 740 On request
3T458T 2.500 915 350-1.830 1.400 350 40 338 8.950 11,3 3 253 417 842 On request
3T458T 2.200 1050 700-2.100 1.400 350 40 338 8.950 11,3 3 253 445 910 On request
4T458T 3.400 915 350-1.830 1.800 400 40 381 11.815 13,8 3 237 456 1.255 On request
4T458T 3.000 1050 700-2.100 1.800 400 40 381 11.815 13,8 3 237 493 1.267 On request
4T458T 3.400 915 350-1.830 1.800 400 40 516 11.815 13,8 4 237 456 1.255 On request
4T458T 3.000 1050 700-2.100 1.800 400 40 516 11.815 13,8 4 237 493 1.267 On request
5T458T 3.900 1050 700-2.100 1.800 400 40 345 13.434 15,7 4 303 304 1.525 On request
5T458T 3.500 1200 650-2.400 1.800 400 40 345 13.434 15,7 4 303 302 1.605 On request
