T458C Rotating Roll Clamp

360° rotation continuous - short arm fixed - continuous contact pads on both arms - 2 hydraulic functions


With the view-optimised designed KAUP Rotating Roll Clamp T458C can move rolls of varying shapes and sizes, making this attachment invaluable when the handling different roll types.

When moving paper, cellulose roles, concrete tubes or tyres (piles) the KAUP rotating role clamp is the right choice.

  • Very good visibility conditions
  • Favorable lost load and weight
  • Solid, slender arm construction
  • Different contact pad coatings available
  • Rotation 360° endlessly
  • Limitation on rotation 180° optionally

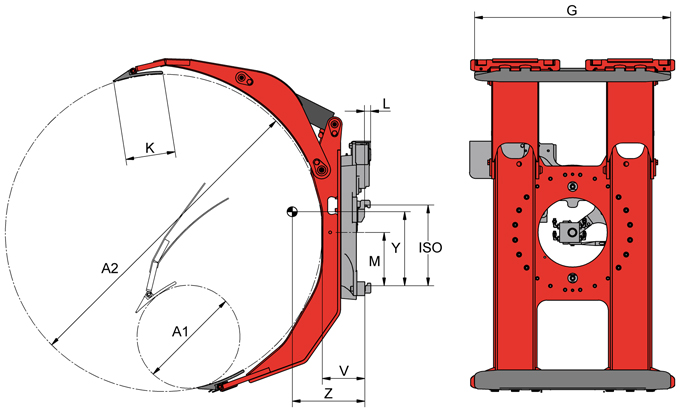

Model Cap. kg LCD mm A1-A2 mm G mm K mm L mm M mm Md ∆-P = 125 bar Nm Req.oil volume per rotation ltr. ISO V mm CofG Z mm Weight kg Price €
1T458C 1.200 650 360-1.300 700 250 33 213 6.013 7,6 2 147 272 358 On request
2T458C 2.200 675 480-1.350 1.000 250 32 269 7.700 9,7 2 230 320 560 On request
2T458C 2.000 800 530-1.600 1.000 250 32 269 7.700 9,7 2 213 361 616 On request
2T458C 2.200 675 480-1.350 1.000 250 32 269 7.700 9,7 3 230 320 560 On request
2T458C 2.000 800 530-1.600 1.000 250 32 269 7.700 9,7 3 213 361 616 On request
3T458C 2.800 725 350-1.450 1.000 250 40 338 8.950 11,3 3 252 359 720 On request
3T458C 2.800 800 530-1.600 1.000 250 40 338 8.950 11,3 3 255 353 725 On request
4T458C 3.600 725 475-1.450 1.000 300 36 381 11.815 13,8 3 233 345 955 On request
4T458C 3.500 800 530-1.600 1.000 300 36 381 11.815 13,8 3 233 345 960 On request
4T458C 3.600 725 475-1.450 1.000 300 36 516 11.815 13,8 4 233 345 955 On request
4T458C 3.500 800 530-1.600 1.000 300 36 516 11.815 13,8 4 233 345 960 On request
