T458 Rotating Roll Clamp

360° rotation continuous - short arm adjustable in 45° position (1) fixed) - continuous contact pads - 2 hydraulic functions

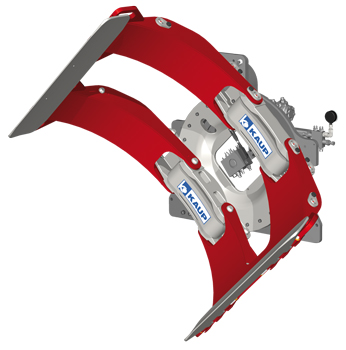

With the view-optimised designed KAUP Rotating Roll Clamp T458 can move all kinds of rolls. This makes this attachment invaluable when the handling different roll types.



  • Very good visibility conditions
  • Favorable lost load and weight
  • Solid, slender arm construction
  • Different contact pad coatings available
  • Rotation 360° endlesslyLimitation on rotation 180° optionally

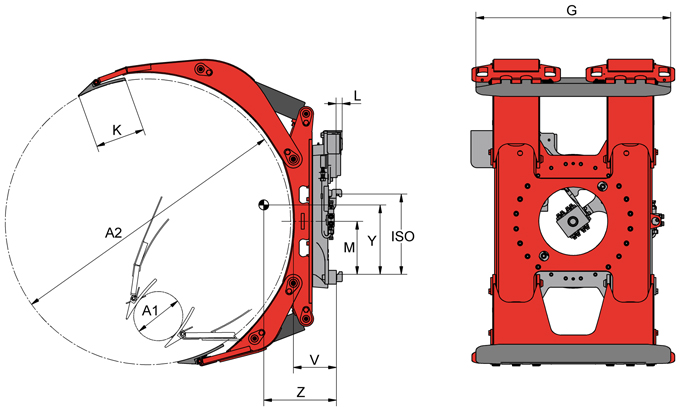

Model Cap. kg LCD mm A1-A2 mm G mm K mm L mm M mm Md ∆-P = 125 bar Nm Req.oil volume per rotation ltr. ISO V mm CofG Z mm Weight kg Price €
1T458 800 450 350-900 700 250 33 208 6.013 7,6 2 165 227 295 On request
1T458 800 800 250-1.600 700 250 33 208 6.013 7,6 2 150 331 365 On request
1T458 1.200 575 250-1.150 700 250 33 208 6.013 7,6 2 147 290 345 On request
1T458 1.200 650 400-1.300 700 250 33 208 6.013 7,6 2 147 281 345 On request
1T458 1.200 650 250-1.300 700 250 33 208 6.013 7,6 2 147 280 350 On request
1T458 1.400 575 250-1.150 700 250 33 208 6.013 7,6 2 147 297 400 On request
1T458 1.400 650 400-1.300 700 250 33 208 6.013 7,6 2 147 292 400 On request
1T458 1.400 650 250-1.300 700 250 33 208 6.013 7,6 2 147 291 405 On request
1,5T458 1.500 675 250-1.350 700 250 33 208 6.013 7,6 2 180 320 550 On request
1,5T458 1.250 800 250-1.600 700 250 33 208 6.013 7,6 2 180 375 605 On request
2T458 2.200 675 250-1.350 1.000 250 32 270 7.700 9,7 2 232 317 611 On request
2T458 2.000 725 250-1.450 1.000 250 32 270 7.700 9,7 2 218 369 656 On request
2T458 2.000 800 250-1.600 1.000 250 32 270 7.700 9,7 2 218 375 670 On request
2T458 1.700 915 350-1.830 1.000 250 32 270 7.700 9,7 2 218 396 702 On request
2T458 1.600 1050 700-2.100 1.000 250 32 270 7.700 9,7 2 218 420 773 On request
2T458 2.200 675 250-1.350 1.000 250 32 270 7.700 9,7 3 232 317 611 On request
2T458 2.000 725 250-1.450 1.000 250 32 270 7.700 9,7 3 218 369 656 On request
2T458 2.000 800 250-1.600 1.000 250 32 270 7.700 9,7 3 218 375 670 On request
2T458 1.700 915 350-1.830 1.000 250 32 270 7.700 9,7 3 218 396 702 On request
2T458 1.600 1050 700-2.100 1.000 250 32 270 7.700 9,7 3 218 420 773 On request
3T458 2.800 675 250-1.350 1.000 250 40 338 8.950 11,3 3 265 311 712 On request
3T458 2.800 725 250-1.450 1.000 250 40 338 8.950 11,3 3 251 358 754 On request
3T458 2.800 800 250-1.600 1.000 250 40 338 8.950 11,3 3 251 360 770 On request
3T458 2.500 915 350-1.830 1.000 250 40 338 8.950 11,3 3 251 385 801 On request
3T458 2.200 1050 700-2.100 1.000 250 40 338 8.950 11,3 3 251 411 869 On request
4T458 3.600 725 250-1.450 1.000 300 36 381 11.815 13,8 3 237 341 984 On request
4T458 3.500 800 250-1.600 1.000 300 36 381 11.815 13,8 3 237 353 1.095 On request
4T458 3.400 915 350-1.830 1.000 300 36 381 11.815 13,8 3 237 378 1.110 On request
4T458 3.000 1050 700-2.100 1.000 300 36 381 11.815 13,8 3 237 405 1.120 On request
4T458 3.600 725 250-1.450 1.000 300 36 516 11.815 13,8 4 237 341 984 On request
4T458 3.500 800 250-1.600 1.000 300 36 516 11.815 13,8 4 237 353 1.095 On request
4T458 3.400 915 350-1.830 1.000 300 36 516 11.815 13,8 4 237 378 1.110 On request
4T458 3.000 1050 700-2.100 1.000 300 36 516 11.815 13,8 4 237 405 1.120 On request
5T458 4.500 800 250-1.600 1.200 400 40 345 13.434 15,7 4 294 394 1.297 On request
5T458 4.000 915 350-1.830 1.200 400 40 345 13.434 15,7 4 302 413 1.389 On request
5T458 4.000 950 800-1.900 1.200 400 40 345 13.434 15,7 4 302 423 1.377 On request
5T458 3.900 1050 700-2.100 1.200 400 40 345 13.434 15,7 4 302 438 1.423 On request
5T458 3.500 1200 850-2.400 1.200 400 40 345 13.434 15,7 4 302 484 1.495 On request
5T458 3.500 1200 650-2.400 1.200 400 40 345 13.434 15,7 4 302 485 1.499 On request
5T458 3.200 1250 900-2.500 1.200 400 40 345 13.434 15,7 4 302 543 1.544 On request
6T458 4.800 900 1.000-1.800 1.200 400 40 396 21.679 18,8 4 391 438 1.677 On request
6T458 4.800 900 700-1.800 1.200 400 40 396 21.679 18,8 4 391 437 1.712 On request
6T458 5.000 1100 1.250-2.200 1.200 400 40 396 21.679 18,8 4 381 493 1.874 On request
6T458 5.000 1100 850-2.200 1.200 400 40 396 21.679 18,8 4 381 492 1.909 On request
