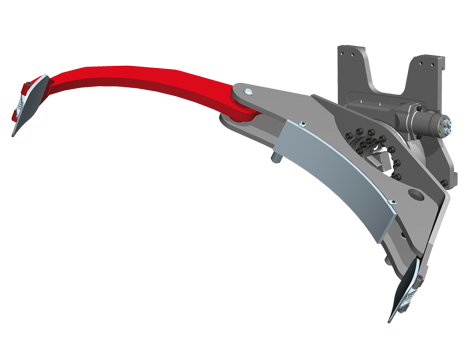

T458S Rotating Roll Clamp

Short arm fixed - 2 hydraulic functions, Especially designed for extreme narrow rolls (width from 150 mm)


The view-optimised designed KAUP Rotating Role Clamp T458S is well suited especially for the careful admission and the transport of narrow roles from a width of 150 mm.

  • Very good visibility conditions
  • Favorable lost load and weight
  • Respectable, slender arm construction
  • Different contact pad coatings available
  • Rotation 360° endlessly

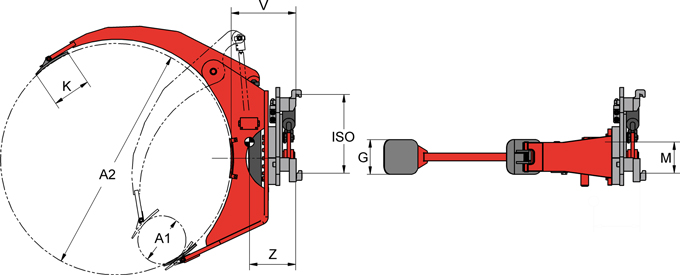

Model Cap. kg LCD mm Rotation A1-A2 mm G mm K mm M mm Md ∆-P = 125 bar Nm Req.oil volume per rotation ltr. ISO V mm CofG Z mm Weight kg
1T458S 350 600 90° 250-1.200 180 200 84 1.950 -- 2 340 258 245
1T458S 350 600 360° 250-1.200 180 200 84 4.200 4,3 2 320 222 260
