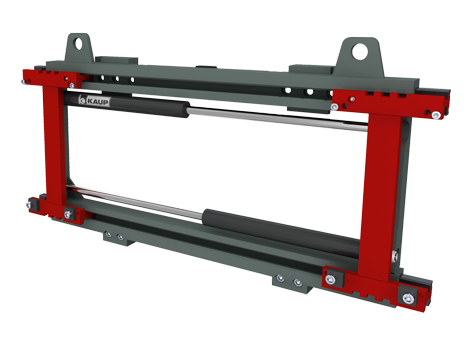

T160 Fork Positioner

with valveblock sideshift dependent on the opening range - without forks - for forks acc. to ISO 2330, 2 hydraulic function

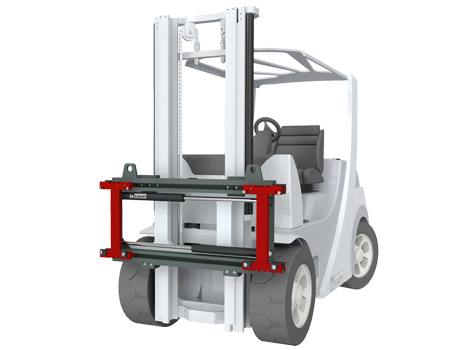

The KAUP Fork Positioner T160 offers an excellent view to the fork tips and the load as well as a favorable lost load centre. Therefore the achievable residual capacity is very good. The qualities of this attachment are particularly effective when different sizes of loads are regularly transported.

  • For moderately heavy operation
  • Excellent residual capacity
  • High stability with optimal tare weight
  • Very good visibility conditions
  • Valve block sideshift serially
  • Use of longer forks possible
  • Original forklift trucks useable
  • Construction width of the attachment and opening range is not dependent on the width of the forklift truck carriage
  • More opening ranges with same construction width compared to shaft guided Fork Positioners

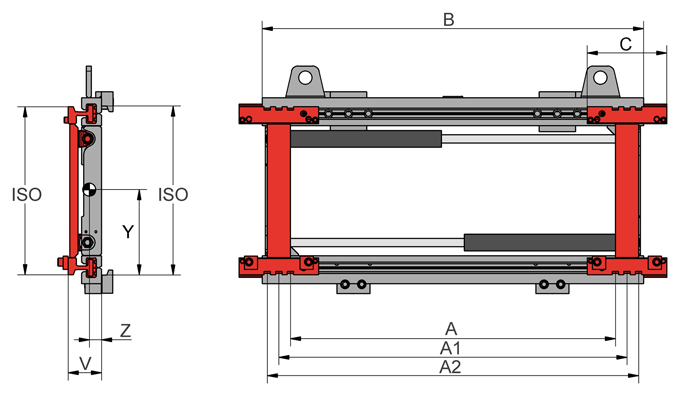

Model Cap. kg LCD mm A mm A1 mm A2 mm B mm C mm mm ISO V mm CofG Z mm CofG Y mm Weight kg
2T160B 2.500 500 150-690 250-790 320-860 880 240 120 2 96 32 237 110
2T160B 2.500 500 150-790 250-890 320-960 980 240 120 2 96 32 235 115
2T160B 2.500 500 150-850 250-950 320-1.020 1.040 240 120 2 96 32 234 119
2T160B 2.500 500 150-950 250-1.050 320-1.120 1.150 240 120 2 96 31 232 125
2T160B 2.500 500 150-1.150 250-1.250 320-1.320 1.350 240 120 2 96 31 230 137
2T160B 2.500 500 150-1.250 250-1.350 320-1.420 1.450 240 120 2 96 31 228 143
2T160B 2.500 500 150-1.350 250-1.450 320-1.520 1.550 240 120 2 96 30 227 149
2T160B 2.500 500 150-1.450 250-1.550 320-1.620 1.650 240 120 2 96 29 224 155
2,5T160B 2.500 600 150-850 250-950 320-1.020 1.040 240 120 2 96 30 244 124
2,5T160B 2.500 600 150-950 250-1.050 320-1.120 1.150 240 120 2 96 30 242 130
3,5T160B 3.600 500 180-880 250-950 320-1.020 1.040 240 130 3 101 38 258 119
3,5T160B 3.600 500 180-980 250-1.050 320-1.120 1.150 240 130 3 101 37 257 125
3,5T160B 3.600 500 180-1.080 250-1.150 320-1.220 1.250 240 130 3 101 37 257 131
3,5T160B 3.600 500 180-1.180 250-1.250 320-1.320 1.350 240 130 3 101 37 257 137
3,5T160B 3.600 500 180-1.280 250-1.350 320-1.420 1.450 240 130 3 101 36 255 143
3,5T160B 3.600 500 180-1.380 250-1.450 320-1.520 1.550 240 130 3 101 35 255 149
3,5T160B 3.600 500 180-1.480 250-1.550 320-1.620 1.650 240 130 3 101 34 254 155
4,8T160B 5.000 600 180-980 250-1.050 320-1.120 1.150 255 150 3 111 42 252 196
4,8T160B 5.000 600 180-1.180 250-1.250 320-1.320 1.350 255 150 3 111 41 253 214
4,8T160B 5.000 600 180-1.280 250-1.350 320-1.420 1.460 255 150 3 111 40 253 223
4,8T160B 5.000 600 180-1.360 250-1.430 320-1.500 1.550 255 150 3 111 40 254 232
4,8T160B 5.000 600 180-1.480 250-1.550 320-1.620 1.650 255 150 3 111 40 254 246
4,8T160B 5.000 600 180-1.580 250-1.650 320-1.720 1.750 255 150 3 111 39 255 260
4,8T160B 5.000 600 180-1.680 250-1.750 320-1.820 1.850 255 150 3 111 39 255 274
6T160 6.000 600 260-1.060 350-1.150 440-1.240 1.350 330 150 4 136 51 323 261
6T160 6.000 600 260-1.170 350-1.260 440-1.350 1.460 330 150 4 136 51 323 273
6T160 6.000 600 260-1.360 350-1.450 440-1.540 1.650 330 150 4 136 50 323 293
6T160 6.000 600 260-1.560 350-1.650 440-1.740 1.860 330 150 4 136 49 323 315
8T160 8.000 600 260-1.560 350-1.650 440-1.740 1.860 330 150 4 136 49 323 315
8T160 8.000 600 260-1.760 350-1.850 440-1.940 2.060 330 150 4 136 49 322 335
8T160 8.000 600 260-1.960 350-2.050 440-2.140 2.260 330 150 4 136 48 322 357
8T160 8.000 600 260-2.060 350-2.150 440-2.240 2.400 330 150 4 136 48 322 367
10T160 8.000 1.100 260-1.760 360-1.860 460-1.960 2.060 370 200 4 170 68 326 542
10T160 8.000 1.100 260-1.960 360-2.060 460-2.160 2.260 370 200 4 170 67 326 571
10T160 8.000 1.100 260-2.060 360-2.160 460-2.260 2.400 370 200 4 170 67 326 590
