T160Z Fork Positioner

with valveblock sideshift dependent on the opening range - 2 hydraulic functions

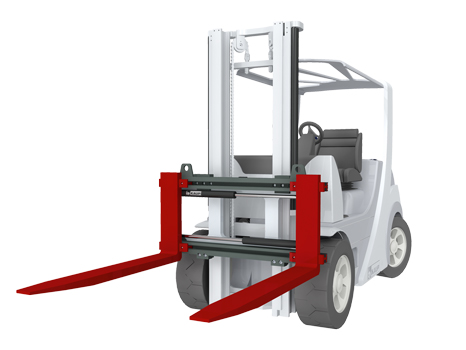

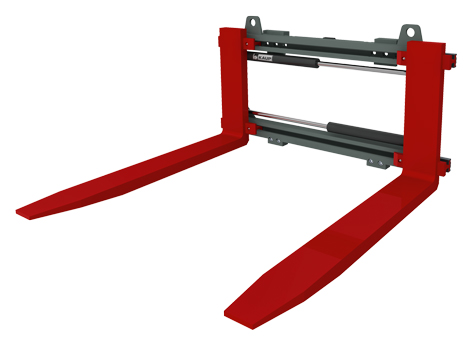

The KAUP hook-on Fork Positioner T160Z (A) is an economical Fork Positioner with welded on or screwed on forks offering an excellent view to the fork tips and load. Therefore the achievable residual capacities are very good.The qualities of the range of T160Z (A) Fork Positioners are particularly effective when different sizes of loads are regularly transported or different kinds of transportation is used - for example in logistics.

  • For moderately heavy operation
  • Excellent residual capacity
  • High stability with optimal tare weight
  • Very good visibility conditions
  • Valve block sideshift serially
  • Supplied with welded forks
  • Supplied optionally with screw on forks for wear intensive operation (A-version)
  • Forks with a length of more than 2400mm available upon request
  • Construction width of the attachment and opening range is not dependent on the width of the forklift truck carriage

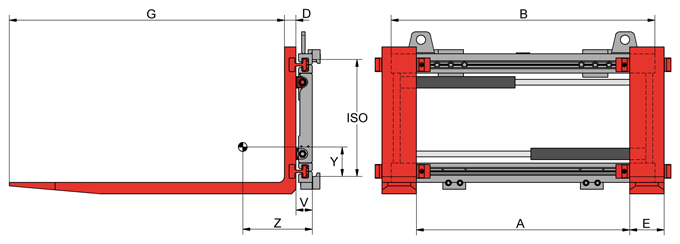

Model Cap. kg LCD mm A mm B mm D mm E mm G mm ISO V mm CofG Z mm CofG Y mm Weight kg Price €
1,5T160BZ 1.600 500 170-710 880 40 100 1.200 2 71 251 132 205 On request
1,5T160BZ 1.600 500 170-810 980 40 100 1.200 2 71 245 134 209 On request
1,5T160BZ 1.600 500 170-870 1.040 40 100 1.200 2 71 240 135 213 On request
1,5T160BZ 1.600 500 170-970 1.150 40 100 1.200 2 71 234 137 219 On request
2T160BZ 2.500 500 130-670 880 45 120 1.200 2 71 289 116 240 On request
2T160BZ 2.500 500 130-770 980 45 120 1.200 2 71 284 118 244 On request
2T160BZ 2.500 500 130-830 1.040 45 120 1.200 2 71 280 120 247 On request
2T160BZ 2.500 500 130-930 1.150 45 120 1.200 2 71 273 122 253 On request
2T160BZ 2.500 500 130-1.130 1.350 45 120 1.200 2 71 263 125 265 On request
2T160BZ 2.500 500 130-1.230 1.450 45 120 1.200 2 71 258 127 271 On request
2T160BZ 2.500 500 130-1.330 1.550 45 120 1.200 2 71 253 129 277 On request
2T160BZ 2.500 500 130-1.430 1.650 45 120 1.200 2 71 248 131 283 On request
2,5T160BZ 2.500 600 130-830 1.040 50 120 1.200 2 71 274 126 266 On request
2,5T160BZ 2.500 600 130-930 1.150 50 120 1.200 2 71 269 128 272 On request
3,5T160BZ 3.600 500 130-830 1.040 50 150 1.200 3 71 308 126 302 On request
3,5T160BZ 3.600 500 130-930 1.150 50 150 1.200 3 71 303 129 307 On request
3,5T160BZ 3.600 500 130-1.030 1.250 50 150 1.200 3 71 300 131 312 On request
3,5T160BZ 3.600 500 130-1.130 1.350 50 150 1.200 3 71 292 133 317 On request
3,5T160BZ 3.600 500 130-1.230 1.450 50 150 1.200 3 71 295 135 322 On request
3,5T160BZ 3.600 500 130-1.330 1.550 50 150 1.200 3 71 292 138 327 On request
3,5T160BZ 3.600 500 130-1.430 1.650 50 150 1.200 3 71 290 140 332 On request
4,5T160BZ 5.000 500 130-930 1.150 60 150 1.200 3 84 275 144 403 On request
4,5T160BZ 5.000 500 130-1.130 1.350 60 150 1.200 3 84 264 149 421 On request
4,5T160BZ 5.000 500 130-1.230 1.460 60 150 1.200 3 84 258 152 433 On request
4,5T160BZ 5.000 500 130-1.310 1.550 60 150 1.200 3 84 253 154 439 On request
4,5T160BZ 5.000 500 130-1.430 1.650 60 150 1.200 3 84 248 157 450 On request
4,5T160BZ 5.000 500 130-1.530 1.750 60 150 1.200 3 84 244 160 458 On request
4,5T160BZ 5.000 500 130-1.630 1.850 60 150 1.200 3 84 240 162 467 On request
4,8T160BZ 5.000 600 130-930 1.150 70 150 1.200 3 84 300 138 444 On request
4,8T160BZ 5.000 600 130-1.130 1.350 70 150 1.200 3 84 291 143 462 On request
4,8T160BZ 5.000 600 130-1.230 1.460 70 150 1.200 3 84 286 147 471 On request
4,8T160BZ 5.000 600 130-1.310 1.550 70 150 1.200 3 84 280 150 480 On request
4,8T160BZ 5.000 600 130-1.430 1.650 70 150 1.200 3 84 275 153 492 On request
4,8T160BZ 5.000 600 130-1.530 1.750 70 150 1.200 3 84 271 156 504 On request
4,8T160BZ 5.000 600 130-1.630 1.850 70 150 1.200 3 84 267 158 517 On request
6T160Z 6.000 600 200-1.110 1.350 70 150 1.200 4 111 257 192 522 On request
6T160Z 6.000 600 200-1.200 1.460 70 150 1.200 4 111 252 194 534 On request
6T160Z 6.000 600 200-1.400 1.650 70 150 1.200 4 111 245 199 554 On request
6T160Z 6.000 600 200-1.600 1.860 70 150 1.200 4 111 237 204 576 On request
8T160Z 8.000 600 200-1.600 1.860 70 150 1.200 4 111 237 204 576 On request
8T160Z 8.000 600 200-1.800 2.060 70 150 1.200 4 111 230 208 597 On request
8T160Z 8.000 600 200-2.000 2.260 70 150 1.200 4 111 224 212 618 On request
8T160Z 8.000 600 210-2.060 2.400 70 150 1.200 4 111 220 214 629 On request
10T160Z 8.000 900 100-1.730 2.060 70 200 1.200 4 138 253 212 877 On request
10T160Z 8.000 900 100-1.900 2.260 70 200 1.200 4 138 247 216 905 On request
10T160Z 8.000 900 100-2.000 2.400 70 200 1.200 4 138 243 218 924 On request
10T160Z 8.000 1.100 100-1.730 2.060 80 200 1.200 4 138 242 219 900 On request
10T160Z 8.000 1.100 100-1.900 2.260 80 200 1.200 4 138 236 221 928 On request
10T160Z 8.000 1.100 100-2.000 2.400 80 200 1.200 4 138 232 223 947 On request
