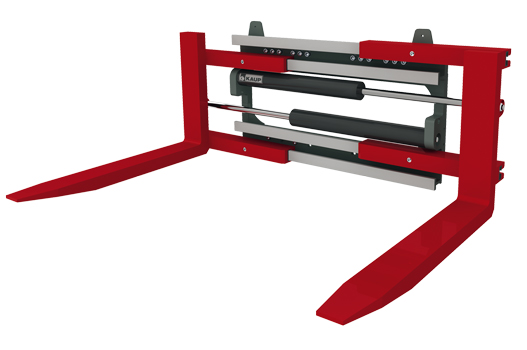

T411Z Fork Positioner

with independent sideshift - 2 hydraulic functions

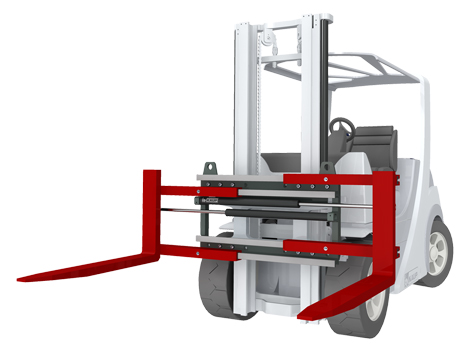

The KAUP hook-on Fork Positioner T411Z is a robust attachment for exceptionally heavy duty operation - ideal for uneven surfaces. Spreading forces induced, for example when handling coils (several) cable drums, rolls or wire coils, can readily be supported due to the large overlap of sectional profiles between fork guide and clamp body. Speedy working cycles and millimetre accurate positioning of the transport load is possible.

  • Good residual capacity
  • Good visibility conditions
  • Independent sideshift serially - alternatively valve block sideshift
  • Opening range significantly larger than the construction width
  • Use of longer forks possible

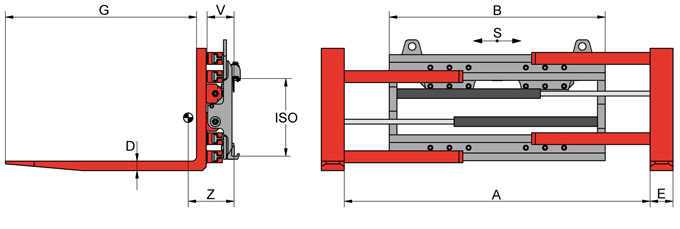

Model Cap. kg LCD mm S mm A mm B mm D mm E mm G mm ISO V mm CofG Z mm Weight kg Price €
1T411Z 1.500 500 ±100 340-1.300 750 40 100 1.200 2 133 268 237 On request
1T411Z 1.500 500 ±100 340-1.520 970 40 100 1.200 2 133 251 259 On request
1T411Z 1.500 500 ±100 350-1.700 1.130 40 100 1.200 2 133 244 270 On request
1T411Z 1.500 500 ±100 330-1.730 1.200 40 100 1.200 2 133 241 274 On request
1,6T411Z 2.300 500 ±100 290-1.470 1.040 45 120 1.200 2 133 266 331 On request
1,6T411Z 2.300 500 ±100 320-1.620 1.130 45 120 1.200 2 133 262 337 On request
1,6T411Z 2.300 500 ±100 320-1.820 1.330 45 120 1.200 2 133 255 351 On request
1,6T401Z 2.300 500 - 300-1.300 850 45 120 1.200 2 126 277 310 On request
2,5T411Z 2.800 500 ±100 290-1.470 1.040 50 120 1.200 2 143 272 360 On request
2,5T411Z 2.800 500 ±100 320-1.620 1.130 50 120 1.200 2 143 269 367 On request
2,5T411Z 2.800 500 ±100 320-1.820 1.330 50 120 1.200 2 143 262 379 On request
2,5T401Z 2.800 500 - 300-1.300 850 50 120 1.200 2 136 285 330 On request
2,5T411Z 3.000 500 ±100 320-1.620 1.130 50 120 1.200 3 143 253 390 On request
2,5T411Z 3.000 500 ±100 320-1.820 1.330 50 120 1.200 3 143 247 402 On request
3T411Z 3.600 500 ±100 260-1.560 1.130 50 150 1.200 2 152 259 495 On request
3T411Z 3.600 500 ±100 260-1.760 1.330 50 150 1.200 2 152 253 513 On request
3T411Z 3.600 500 ±100 130-1.630 1.460 50 150 1.200 2 152 250 522 On request
3T411Z 3.600 500 ±100 250-1.870 1.460 50 150 1.200 2 152 249 524 On request
3T411Z 3.600 500 ±100 260-1.560 1.130 50 150 1.200 3 152 259 495 On request
3T411Z 3.600 500 ±100 260-1.760 1.330 50 150 1.200 3 152 253 513 On request
3T411Z 3.600 500 ±100 130-1.630 1.460 50 150 1.200 3 152 250 522 On request
3T411Z 3.600 500 ±100 250-1.870 1.460 50 150 1.200 3 152 249 524 On request
4T411Z 4.150 500 ±100 260-1.560 1.130 50 150 1.200 3 162 248 559 On request
4T411Z 4.150 500 ±100 260-1.760 1.330 50 150 1.200 3 162 243 578 On request
4T411Z 4.150 500 ±100 130-1.630 1.460 50 150 1.200 3 162 240 589 On request
4T411Z 4.150 500 ±100 250-1.870 1.460 50 150 1.200 3 162 239 591 On request
4,5T411Z 5.000 500 ±100 280-1.630 1.200 60 150 1.200 3 188 259 662 On request
4,5T411Z 5.000 500 ±100 240-1.680 1.330 60 150 1.200 3 188 254 679 On request
4,5T411Z 5.000 500 ±100 170-1.670 1.460 60 150 1.200 3 188 250 697 On request
4,5T411Z 5.000 500 ±100 280-1.980 1.550 60 150 1.200 3 188 247 712 On request
4,5T411Z.1 5.000 500 ±100 280-1.630 1.200 60 150 1.200 3 178 256 663 On request
4,5T411Z.1 5.000 500 ±100 240-1.680 1.330 60 150 1.200 3 178 252 678 On request
4,5T411Z.1 5.000 500 ±100 170-1.670 1.460 60 150 1.200 3 178 249 693 On request
4,5T411Z.1 5.000 500 ±100 280-1.980 1.550 60 150 1.200 3 178 246 706 On request
4,8T411Z 5.000 600 ±100 280-1.630 1.200 70 150 1.200 3 178 280 710 On request
4,8T411Z 5.000 600 ±100 240-1.680 1.330 70 150 1.200 3 178 277 725 On request
4,8T411Z 5.000 600 ±100 170-1.670 1.460 70 150 1.200 3 178 273 740 On request
4,8T411Z 5.000 600 ±100 280-1.980 1.550 70 150 1.200 3 178 270 753 On request
5T411Z 6.200 600 ±160 190-1.690 1.460 70 150 1.200 4 176 250 807 On request
5T411Z 6.200 600 ±160 230-1.860 1.550 70 150 1.200 4 176 247 819 On request
5T411Z 6.200 600 ±160 500-2.400 1.550 70 150 1.200 4 176 239 879 On request
5T411Z 6.200 600 ±160 230-2.130 1.820 70 150 1.200 4 176 241 850 On request
