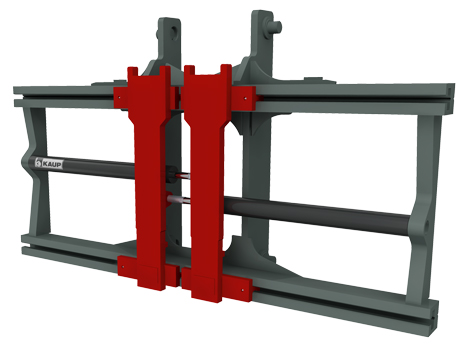

T160ITW Fork Positioner

with valveblock sideshift dependent on the opening range - without forks, for forks with quick release system 'Terminal West' - 2 hydraulic functions


The KAUP integrated Fork Positioner T160TW is an economical integrated Fork Positioner with excellent view to the fork tips and load. Compared to hook-on attachments in the T160 range this Fork Positioner in Terminal-West version has an even better, higher residual capacity.

  • Terminal West version for quick change of forks
  • Economical integrated Fork Positioner for moderately heavy operation
  • Excellent residual capacity
  • High stability with optimal tare weight
  • Very good visibility conditions
  • Valve block sideshift serially

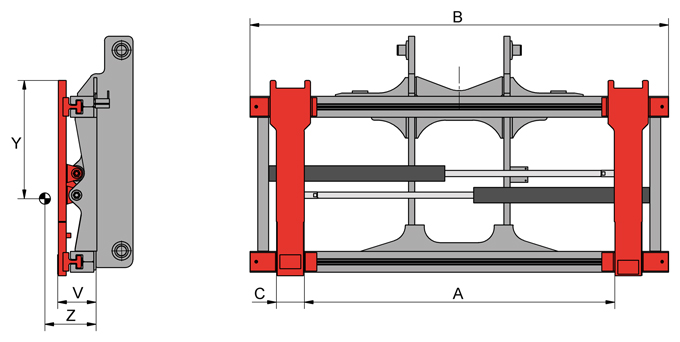

Model Cap. kg LCD mm A mm B mm C mm V mm CofG Z mm CofG Y mm Weight kg
12T160ITW 12.000 600 370-2.000 2.400 200 233 90 482 1.135
12T160ITW 12.000 600 300-2.300 2.700 200 233 87 484 1.235
12T160ITW 12.000 600 500-2.700 3.100 200 233 87 484 1.330
16T160ITW 16.000 600 370-2.000 2.400 200 233 90 482 1.135
16T160ITW 16.000 600 500-2.700 3.100 200 233 87 484 1.330
24T160ITW 24.000 600 270-1.900 2.400 250 233 90 483 1.175
24T160ITW 24.000 600 400-2.600 3.100 250 233 87 484 1.340
32T160ITW 32.000 600 270-2.100 2.600 250 233 88 493 1.470
32T160ITW 32.000 600 260-2.600 3.100 250 233 86 494 1.590
