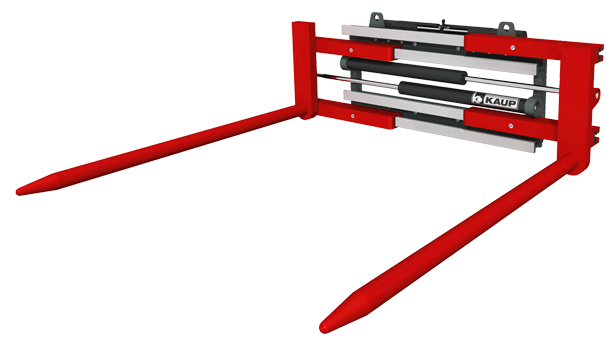

T411ZR Fork Positioner

with independent sideshift - 2 hydraulic functions


The KAUP hook-on Fork Positioner with Round Forks T411ZR is a robust attachment for exceptionally heavy duty operation - ideal for uneven surfaces. Spreading forces induced, for example when handling coils (several) cable drums, rolls or wire coils, can readily be supported due to the large overlap of sectional profiles between fork guide and clamp body. Speedy working cycles and millimetre accurate positioning of the transport load is possible between the forks or with the round forks.

  • Good residual capacity
  • Good visibility conditions
  • Independent sideshift serially
  • Opening range significantly larger than the construction width
  • Load pick up in area of fork tips or with maximum opening range easily possible

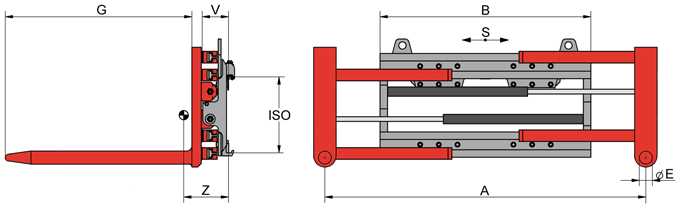

Model Cap. kg LCD mm S mm A mm B mm E mm G mm ISO V mm CofG Z mm Weight kg Price €
1T411ZR 1.500 500 ±100 420-1.380 750 60 1.200 2 133 245 235 On request
1T411ZR 1.500 500 ±100 420-1.600 970 60 1.200 2 133 230 258 On request
1T411ZR 1.500 500 ±100 430-1.780 1.130 60 1.200 2 133 224 268 On request
1T411ZR 1.500 500 ±100 410-1.810 1.200 60 1.200 2 133 221 273 On request
1,5T411ZR 2.300 500 ±100 440-1.620 970 60 1.200 2 133 211 295 On request
1,5T411ZR 2.300 500 ±100 160-1.060 970 60 1.200 2 133 215 285 On request
1,5T411ZR 2.300 500 ±100 450-1.800 1.130 60 1.200 2 133 207 305 On request
1,5T411ZR 2.300 500 ±100 210-1.390 1.200 60 1.200 2 133 205 308 On request
1,5T411ZR 2.300 500 ±100 430-1.830 1.200 60 1.200 2 133 205 310 On request
2T411ZR 2.800 500 ±100 400-1.500 970 70 1.200 2 143 210 316 On request
2T411ZR 2.800 500 ±100 440-1.740 1.130 70 1.200 2 143 205 326 On request
2T411ZR 2.800 500 ±100 190-1.240 1.130 70 1.200 2 143 209 315 On request
2T411ZR 2.800 500 ±100 240-1.540 1.330 70 1.200 2 143 201 337 On request
2T411ZR 2.800 500 ±100 440-1.940 1.330 70 1.200 2 143 200 339 On request
2T411ZR 2.800 500 ±100 400-1.500 970 70 1.200 3 143 210 316 On request
2T411ZR 2.800 500 ±100 440-1.740 1.130 70 1.200 3 143 205 326 On request
2T411ZR 2.800 500 ±100 190-1.240 1.130 70 1.200 3 143 209 315 On request
2T411ZR 2.800 500 ±100 240-1.540 1.330 70 1.200 3 143 201 337 On request
2T411ZR 2.800 500 ±100 440-1.940 1.330 70 1.200 3 143 200 339 On request
