T466 Fork Positioner

with independent sideshift - without forks - for forks acc. to ISO 2330 - 2 hydraulic functions

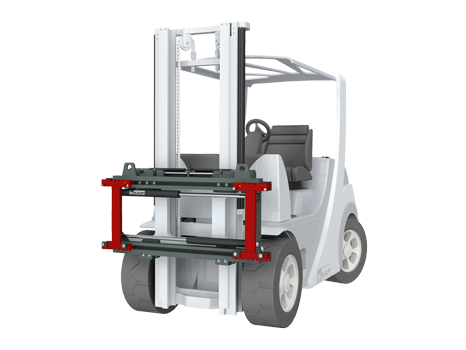

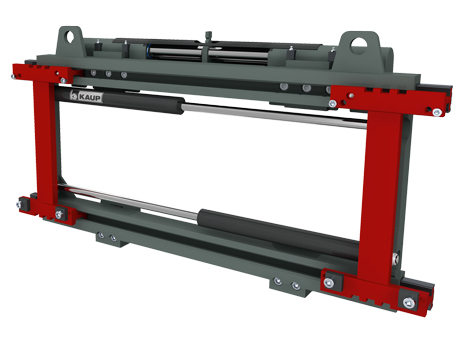

The KAUP hook-on Fork Positioner T466 has been specially designed with optimised visibility and residual capacity. This attachment is manufactured from well proven components and is suitable for moderately heavy duty tasks. The qualities of the range of T466 Fork Positioners are particularly effective when different sizes of loads are regularly transported or different kinds of transportation is used - for example in logistics.

  • For moderately heavy operation - complete program with capacities of up to 10 tons
  • Very good residual capacity
  • Excellent visibility
  • Supplied with welded forks
  • Supplied optionally with screw on forks for wear intensive operation (A-version)
  • Independent sideshift serially
  • Construction width of the attachment and opening range is not dependent on the width of the forklift truck carriage

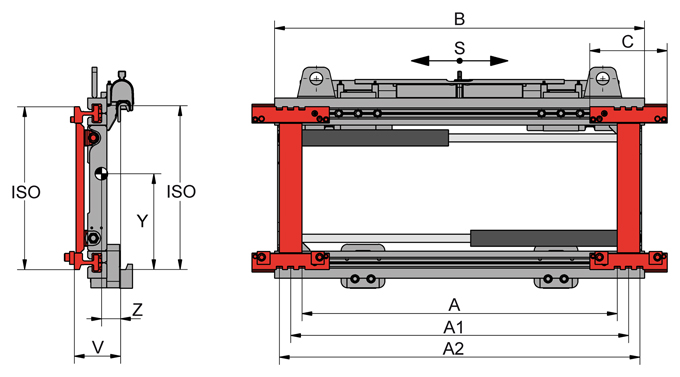

Model Cap. kg LCD mm A mm A1 mm A2 mm B mm C mm S mm mm ISO V mm CofG Z mm CofG Y mm Weight kg
2T466B 2.500 500 150-690 250-790 320-860 880 240 ±100 120 2 138 55 245 137
2T466B 2.500 500 150-790 250-890 320-960 980 240 ±100 120 2 138 55 244 141
2T466B 2.500 500 150-850 250-950 320-1.020 1.040 240 ±100 120 2 138 56 242 145
2T466B 2.500 500 150-950 250-1.050 320-1.120 1.150 240 ±100 120 2 138 57 240 152
2T466B 2.500 500 150-1.150 250-1.250 320-1.320 1.350 240 ±100 120 2 138 57 238 164
2T466B 2.500 500 150-1.250 250-1.350 320-1.420 1.450 240 ±100 120 2 148 62 237 196
2T466B 2.500 500 150-1.350 250-1.450 320-1.520 1.550 240 ±100 120 2 148 64 235 203
2T466B 2.500 500 150-1.450 250-1.550 320-1.620 1.650 240 ±100 120 2 148 67 232 211
2,5T466B 2.500 600 150-850 250-950 320-1.020 1.040 240 ±100 120 2 153 59 227 170
2,5T466B 2.500 600 150-950 250-1.050 320-1.120 1.150 240 ±100 120 2 153 62 229 185
3,5T466B 3.500 500 180-880 250-950 320-1.020 1.040 240 ±100 130 3 153 62 283 190
3,5T466B 3.500 500 180-980 250-1.050 320-1.120 1.150 240 ±100 130 3 153 63 282 198
3,5T466B 3.500 500 180-1.080 250-1.150 320-1.220 1.250 240 ±100 130 3 153 63 281 206
3,5T466B 3.500 500 180-1.180 250-1.250 320-1.320 1.350 240 ±100 130 3 153 64 280 213
3,5T466B 3.500 500 180-1.280 250-1.350 320-1.420 1.450 240 ±100 130 3 153 64 279 221
3,5T466B 3.500 500 180-1.380 250-1.450 320-1.520 1.550 240 ±100 130 3 153 64 278 228
3,5T466B 3.500 500 180-1.480 250-1.550 320-1.620 1.650 240 ±100 130 3 153 65 277 236
4,8T466B 5.000 600 180-980 250-1.050 320-1.120 1.150 255 ±100 150 3 153 68 277 243
4,8T466B 5.000 600 180-1.180 250-1.250 320-1.320 1.350 255 ±100 150 3 153 69 275 262
4,8T466B 5.000 600 180-1.280 250-1.350 320-1.420 1.460 255 ±100 150 3 153 69 274 273
4,8T466B 5.000 600 180-1.360 250-1.430 320-1.500 1.550 255 ±100 150 3 153 69 274 282
4,8T466B 5.000 600 180-1.480 250-1.550 320-1.620 1.650 255 ±100 150 3 163 74 270 324
4,8T466B 5.000 600 180-1.580 250-1.650 320-1.720 1.750 255 ±100 150 3 163 75 270 337
4,8T466B 5.000 600 180-1.680 250-1.750 320-1.820 1.850 255 ±100 150 3 163 75 269 350
6T466 6.000 600 260-1.060 350-1.150 440-1.240 1.350 330 ±100 150 4 176 72 372 348
6T466 6.000 600 260-1.170 350-1.260 440-1.350 1.460 330 ±100 150 4 176 72 370 363
6T466 6.000 600 260-1.360 350-1.450 440-1.540 1.650 330 ±160 150 4 176 72 370 383
6T466 6.000 600 260-1.560 350-1.650 440-1.740 1.860 330 ±160 150 4 176 72 366 404
8T466 8.000 600 260-1.560 350-1.650 440-1.740 1.860 330 ±160 150 4 176 72 366 404
8T466 8.000 600 260-1.760 350-1.850 440-1.940 2.060 330 ±160 150 4 176 73 364 425
8T466 8.000 600 260-1.960 350-2.050 440-2.140 2.260 330 ±160 150 4 176 73 362 445
8T466 8.000 600 260-2.060 350-2.150 440-2.240 2.400 330 ±160 150 4 176 74 359 460
10T466 8.000 1.100 260-1.760 360-1.860 460-1.960 2.060 370 ±160 200 4 238 110 351 700
10T466 8.000 1.100 260-1.960 360-2.060 460-2.160 2.260 370 ±160 200 4 238 110 350 725
10T466 8.000 1.100 260-2.060 360-2.160 460-2.260 2.400 370 ±160 200 4 238 110 349 745
