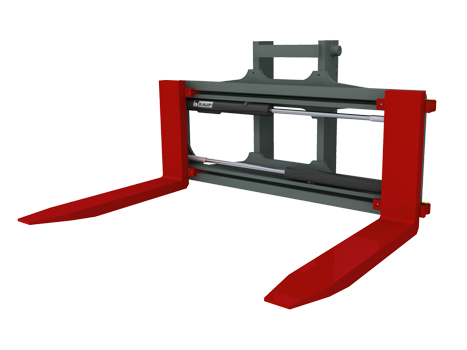

T160IZ Fork Positioner

with valveblock sideshift dependent on the opening range - 2 hydraulic functions


The integrated KAUP Fork Positioner T160IZ(A) is an economical integrated Fork Positioner with welded on or screwed on forks offering an excellent view to the fork tips and load. Compared to hook-on attachments in the T160Z(A) range this Fork Positioner has an even better, higher residual capacity.

  • For moderately heavy operation
  • Excellent residual capacity
  • High stability with optimal tare weight
  • Very good visibility conditions
  • Valve block sideshift serially
  • Supplied with welded forks
  • Supplied optionally with screw on forks for wear intensive operation (A-version)

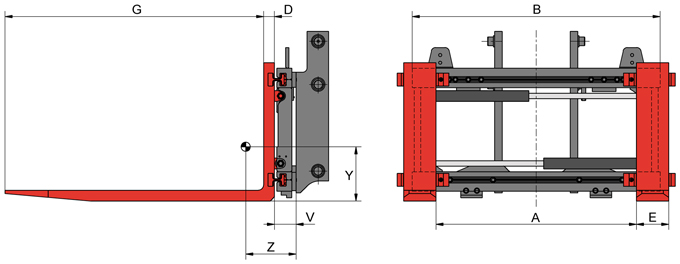

Model Cap. kg LCD mm A mm B mm D mm E mm G mm V mm CofG Z mm CofG Y mm Weight kg Price €
1,5T160BIZ 1.600 500 170-870 1.040 40 100 1.200 91 261 197 210 On request
1,5T160BIZ 1.600 500 170-970 1.150 40 100 1.200 91 255 200 216 On request
2T160BIZ 2.500 500 130-830 1.040 45 120 1.200 91 300 184 245 On request
2T160BIZ 2.500 500 130-930 1.150 45 120 1.200 91 293 187 251 On request
2,5T160BIZ 2.500 600 130-830 1.040 50 120 1.200 101 305 186 267 On request
2,5T160BIZ 2.500 600 130-930 1.150 50 120 1.200 101 300 188 273 On request
3,5T160BIZ 3.600 500 130-930 1.150 50 150 1.200 111 296 219 350 On request
3,5T160BIZ 3.600 500 130-1.130 1.350 50 150 1.200 111 286 224 365 On request
4,5T160BIZ 5.000 500 130-1.130 1.350 60 150 1.200 114 263 240 469 On request
4,5T160BIZ 5.000 500 130-1.310 1.550 60 150 1.200 114 255 243 489 On request
4,8T160BIZ 5.000 600 130-1.130 1.350 70 150 1.200 114 291 232 512 On request
4,8T160BIZ 5.000 600 130-1.310 1.550 70 150 1.200 114 283 236 532 On request
6T160BIZ 6.000 600 200-1.200 1.460 70 150 1.200 141 264 336 642 On request
6T160BIZ 6.000 600 200-1.400 1.650 70 150 1.200 141 258 340 663 On request
6T160BIZ 6.000 600 200-1.600 1.860 70 150 1.200 141 239 343 685 On request
8T160BIZ 8.000 600 200-1.600 1.860 70 150 1.200 141 252 343 685 On request
8T160BIZ 8.000 600 200-1.800 2.060 70 150 1.200 141 233 353 755 On request
8T160BIZ 8.000 600 200-2.000 2.260 70 150 1.200 141 228 354 771 On request
8T160BIZ 8.000 600 210-2.060 2.400 70 150 1.200 141 225 357 785 On request
10T160BIZ 8.000 900 100-1.730 2.060 70 200 1.200 178 268 350 963 On request
10T160BIZ 8.000 900 100-1.900 2.260 70 200 1.200 178 263 352 991 On request
10T160BIZ 8.000 900 100-2.000 2.400 70 200 1.200 178 258 357 1.015 On request
10T160BIZ 8.000 1.100 100-1.730 2.060 80 200 1.200 178 279 346 1.012 On request
10T160BIZ 8.000 1.100 100-1.900 2.260 80 200 1.200 178 274 349 1.040 On request
10T160BIZ 8.000 1.100 100-2.000 2.400 80 200 1.200 178 268 353 1.064 On request
12T160IZ 12.000 600 370-2.000 2.400 80 200 1.200 178 225 585 1.450 On request
12T160IZ 12.000 600 300-2.300 2.700 80 200 1.200 178 216 590 1.540 On request
12T160IZ 12.000 600 500-2.700 3.100 80 200 1.200 178 207 600 1.640 On request
16T160IZ 16.000 600 370-2.000 2.400 90 200 1.200 178 222 585 1.600 On request
16T160IZ 8.000 1.200 370-2.000 2.400 90 200 2.400 178 475 498 1.905 On request
16T160IZ 8.000 1.200 500-2.700 3.100 90 200 2.400 178 438 517 2.090 On request
24T160IZ 24.000 600 270-1.900 2.400 90 250 1.200 178 244 568 1.755 On request
24T160IZ 12.000 1.200 270-1.900 2.400 90 250 2.400 178 521 474 2.137 On request
24T160IZ 12.000 1.200 400-2.600 3.100 90 250 2.400 178 486 492 2.320 On request
32T160IZ 32.000 600 270-2.100 2.600 100 250 1.200 178 230 585 2.020 On request
32T160IZ 16.000 1.200 270-2.100 2.600 100 250 2.400 178 493 493 2.435 On request
32T160IZ 16.000 1.200 260-2.600 3.100 100 250 2.400 178 470 505 2.570 On request
