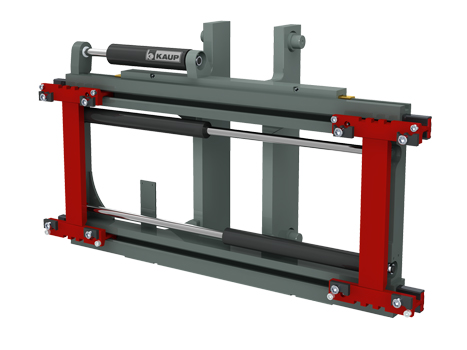

T466BI Fork Positioner

with independent sideshift - without forks - for forks acc. to ISO 2330 - 2 hydraulic functions


The KAUP integrated Fork Positioner T466BI has been specially designed with optimised visibility and residual capacity. Compared to hook-on Fork Positioners in the T466 range with even better, higher residual capacities this attachment is manufactured from well proven components and is suitable for moderately heavy duty tasks. The qualities of the range of T466BI Fork Positioners are particularly effective when different sizes of loads are regularly transported or different kinds of transportation are used - for example in logistics.

  • For moderately heavy operation - complete program with capacities of up to 10 tons
  • Very good residual capacity
  • Excellent visibility
  • Supplied with welded forks
  • Supplied optionally with screw on forks for wear intensive operation (A-version)
  • Independent sideshift serially

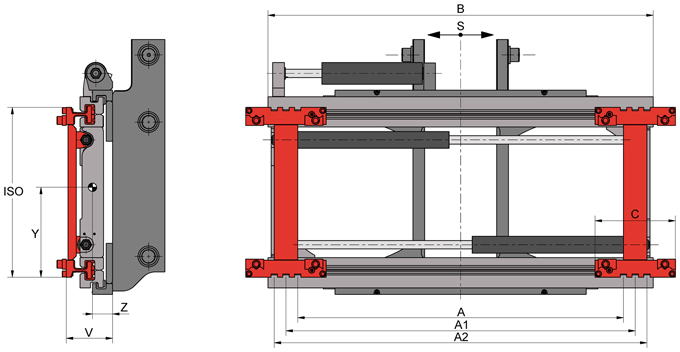

Model Cap. kg LCD mm A mm A1 mm A2 mm B mm C mm S mm mm ISO V mm CofG Z mm CofG Y mm Weight kg
2T466BI 2.500 500 150-850 250-950 320-1.020 1.040 240 ±100 120 2 133 58 218 156
2T466BI 2.500 500 150-950 250-1.050 320-1.120 1.150 240 ±100 120 2 133 58 217 163
2,5T466BI 2.500 600 150-850 250-950 320-1.020 1.040 240 ±100 120 2 133 60 218 158
2,5T466BI 2.500 600 150-950 250-1.050 320-1.120 1.150 240 ±100 120 2 133 60 217 165
3,5T466BI 3.500 500 180-980 250-1.050 320-1.120 1.150 240 ±100 130 3 138 60 262 177
3,5T466BI 3.500 500 180-1.180 250-1.250 320-1.320 1.350 240 ±100 130 3 138 62 262 190
4,8T466BI 5.000 600 180-1.180 250-1.250 320-1.320 1.350 255 ±100 150 3 148 65 268 279
4,8T466BI 5.000 600 180-1.360 250-1.430 320-1.500 1.550 255 ±100 150 3 148 62 266 319
6T466BI 6.000 600 260-1.170 350-1.260 440-1.350 1.460 330 ±100 150 4 171 68 343 402
6T466BI 6.000 600 260-1.360 350-1.450 440-1.540 1.650 330 ±160 150 4 171 68 345 435
6T466BI 6.000 600 260-1.560 350-1.650 440-1.740 1.860 330 ±160 150 4 171 68 343 468
8T466BI 8.000 600 260-1.560 350-1.650 440-1.740 1.860 330 ±160 150 4 171 68 343 468
8T466BI 8.000 600 260-1.760 350-1.850 440-1.940 2.060 330 ±160 150 4 171 65 341 523
8T466BI 8.000 600 260-1.960 350-2.050 440-2.140 2.260 330 ±160 150 4 171 65 340 559
8T466BI 8.000 600 260-2.060 350-2.150 440-2.240 2.400 330 ±160 150 4 171 64 340 586
10T466BI 8.000 1.100 260-1.760 360-1.860 460-1.960 2.060 370 ±160 200 4 234 102 344 880
10T466BI 8.000 1.100 260-1.960 360-2.060 460-2.160 2.260 370 ±160 200 4 234 101 343 940
10T466BI 8.000 1.100 260-2.060 360-2.160 460-2.260 2.400 370 ±160 200 4 234 100 342 978
