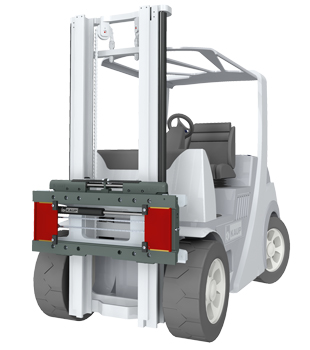

T163SN Fork Positioner

with independent sideshift - without forks - for forks acc. to ISO 2330 - 2 hydraulic functions


Simply designed and therefore extremely economical, the KAUP Fork Positioner T163SN has absolutely symmetrical fork adjustment with synchronism via roller chain. This range is based on the Sideshifter T151-P2 rangewith corresponding capacities.

  • For light duty (indoors e.g. in dirt free conditions)
  • Synchronism via roller chain
  • Original forklift trucks useable
  • Construction width of the attachment and opening range is not dependent on the width of the forklift truck carriage
  • With sideshift (T163SN) or without sideshift (T163N)

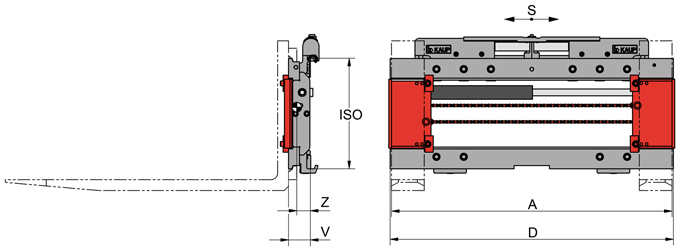

Model Cap. kg LCD mm S mm A mm D mm mm ISO V mm CofG Z mm Weight kg
2T163SN 2.500 600 ±100 350-820 830 70-120 2 82 41 90
2T163SN 2.500 600 ±100 350-820 830 125-140 2 82 41 91
2T163SN 2.500 600 ±100 310-1.030 1.040 70-120 2 82 43 102
2T163SN 2.500 600 ±100 350-1.030 1.040 125-140 2 82 43 103
2T163SN 2.500 600 ±100 430-1.150 1.160 70-120 2 82 44 108
2T163SN 2.500 600 ±100 390-1.350 1.360 70-120 2 82 51 133
2T163SN 2.500 600 ±100 390-1.490 1.500 70-120 2 92 52 142
2T163SN 2.500 600 ±100 390-1.690 1.710 70-120 2 92 51 170
2T163SN 2.500 600 ±100 500-2.120 2.130 70-120 2 92 53 208
4T163SN 4.000 500 ±100 390-1.030 1.040 90-160 3 82 41 158
4T163SN 4.000 500 ±100 430-1.150 1.160 90-160 3 82 42 167
4T163SN 4.000 500 ±100 390-1.350 1.360 90-160 3 82 43 182
4T163SN 4.000 500 ±100 390-1.490 1.510 90-160 3 92 51 219
4T163SN 4.000 500 ±100 390-1.690 1.710 90-160 3 92 52 237
4,5T163SN 5.000 500 ±100 430-1.150 1.160 90-160 3 92 48 187
4,5T163SN 5.000 500 ±100 390-1.350 1.360 90-160 3 92 50 205
4,5T163SN 5.000 500 ±100 390-1.790 1.810 90-160 3 112 64 318
4,5T163SN 5.000 500 ±100 450-1.900 1.910 90-160 3 112 64 330
4,8T163SN 5.000 600 ±100 430-1.150 1.160 90-160 3 92 45 195
4,8T163SN 5.000 600 ±100 390-1.350 1.360 90-160 3 92 50 216
5T163SN 5.000 600 ±100 470-1.190 1.200 150-200 4 102 57 256
6T163SN 8.000 600 ±160 470-1.390 1.400 150-200 4 102 46 345
6T163SN 8.000 600 ±160 470-1.470 1.510 150-200 4 102 50 353
6T163SN 8.000 600 ±160 500-1.680 1.690 150-200 4 102 50 385
6T163SN 8.000 600 ±160 470-1.870 1.880 150-200 4 112 58 451
6T163SN 8.000 600 ±160 530-1.980 1.990 150-200 4 112 58 463
8T163SN 8.000 600 ±160 500-2.120 2.130 150-200 4 132 68 588
8T163SN 8.000 600 ±160 530-2.380 2.400 150-200 4 132 70 642
