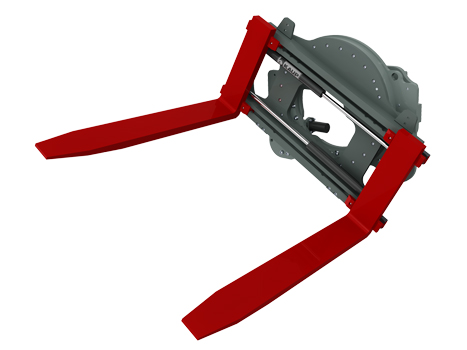

T456BZ Rotating Fork Positioner

Rotation 360° continuous - 2 hydraulic functions


This attachment combines the advantages of two KAUP series: Rotators and Fork Positioners. With the 1000-fold proven basic components of the KAUP modular system the result is a robust device with numerous different application possibilities.

  • Good visibility conditions
  • Rotation 360° endless
  • Solid construction
  • Attachment also available with screw-on forks
  • Optionally available with sideshift
  • Larger models and construction widths optionally available

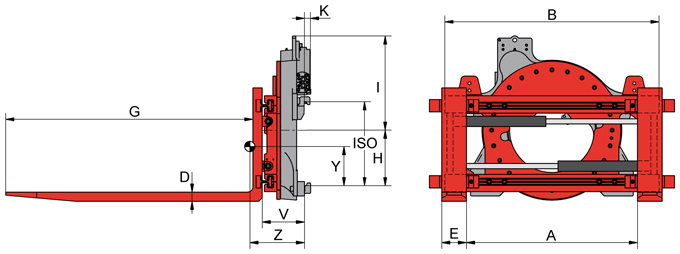

Model Cap. kg LCD mm A mm B mm D mm E mm G mm H mm I mm K mm Md ∆-P = 125 bar Nm Req.oil volume per rotation ltr. ISO V mm CofG Z mm CofG Y mm Weight kg
2T456BZ 2.500 500 130-930 1.150 45 120 1.200 269 457 33 7.700 9,7 2 210 261 198 455
2T456BZ 2.500 500 130-930 1.150 45 120 1.200 269 457 33 7.700 9,7 3 210 261 198 455
3,5T456BZ 3.600 500 130-930 1.150 50 150 1.200 338 395 40 8.950 11,3 3 258 271 241 703
4,5T456BZ 4.500 500 130-1.130 1.350 60 150 1.200 338 395 40 8.950 11,3 3 261 279 236 788
5T456BZ 5.000 600 260-1.260 1.700 60 150 1.200 345 445 40 13.434 15,7 4 334 301 284 1.020
