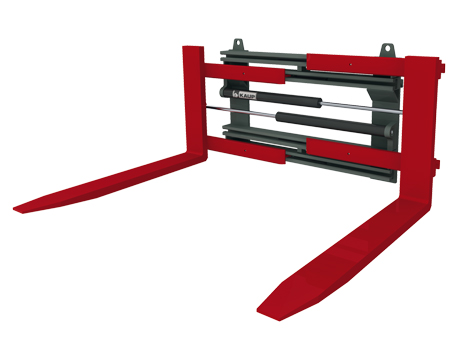

T411BZI Fork Positioner

with valveblock sideshift dependent on the opening range - 2 hydraulic functions


The KAUP integrated Fork Positioner T411BZI is a robust attachment with very large opening ranges suitable for exceptionally heavy duty operation - ideal for uneven surfaces. The construction gives an optimal view to the fork tips. The residual capacity is, due to the integration in the mast of the forklift truck, higher than the T411BZ range.

  • Very large opening ranges
  • Valve block sideshift - dependent on opening range - serially
  • Screw-on forks optional

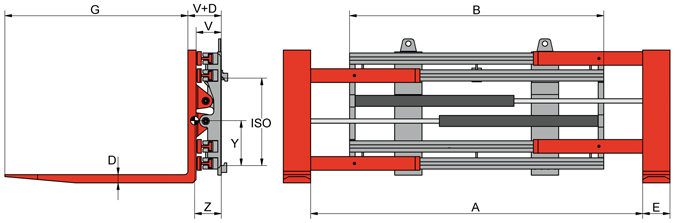

Model Cap. kg LCD mm A mm B mm D mm E mm G mm V mm CofG Z mm Weight kg Price €
4T411BZI 4.500 500 330-2.530 2.030 60 120 1.200 139 138 848 On request
5T411BZI 6.300 600 220-1.850 1.550 60 150 1.200 159 193 840 On request
5T411BZI 6.300 600 180-2.080 1.860 60 150 1.200 159 185 902 On request
5T411BZI 6.300 600 380-2.480 1.860 60 150 1.200 159 185 906 On request
5T411BZI 6.300 600 310-2.510 2.030 60 150 1.200 159 181 936 On request
6T411BZI 8.000 600 170-1.800 1.550 60 200 1.200 169 223 1.057 On request
6T411BZI 8.000 600 130-2.030 1.860 60 200 1.200 169 216 1.117 On request
6T411BZI 8.000 600 330-2.430 1.860 60 200 1.200 169 215 1.121 On request
6T411BZI 8.000 600 200-3.800 3.390 50 300 1.200 169 208 1.437 On request
8T411BZI 8.000 900 330-2.530 2.000 70 200 1.200 188 199 1.424 On request
8T411BZI 8.000 900 400-2.900 2.400 70 200 1.200 188 191 1.532 On request
